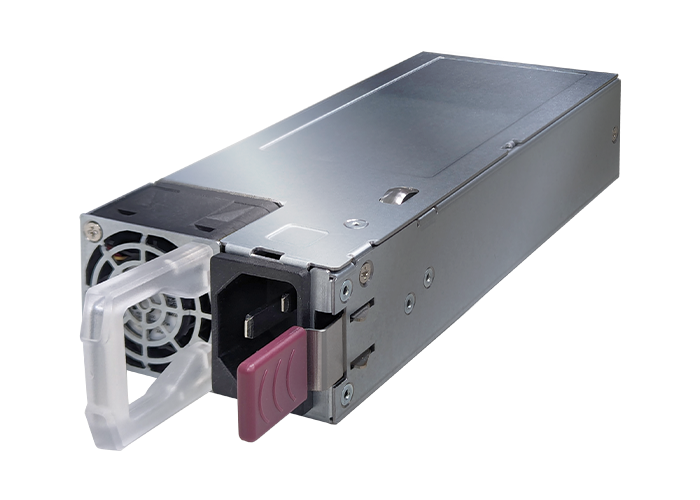

CPR-1621-8M1

首頁產品CPR-1621-8M1
CPR-1621-8M1

1600W

Dual Input (AC/DC-DC)

Redundant

Type

  • Dual Input (AC/DC-DC)

Dimensions

  • 185 x 73.5 x 40 mm (D x W x H)

Max Power

  • 1600W

80 PLUS

  • 80 plus Titanium

Key Features

  • High Efficiency: 96%
  • SPDM communication security
  • PMBus, SMBus, I2C functions
  • Fully digital power supply
  • Smart Fan Speed Control
  • Hot Swappable
  • In-system Firmware Upload
  • Illuminated handle indicates power status
Datasheet

Input

Voltage AC input: 90 - 264Vac
DC Input: 192 - 310Vdc
Frequency 47 - 63Hz
Current

Output

Voltage12V12Vsb
Regulation12.06V ~ 12.34V11.65V ~ 12.35V
Max Load133.3A@ 200-240Vac / 92-310Vdc4.0A
Ripple & Noise120mVp-p120mVp-p

General

Hold-up time 11msec @ 100% Load
Efficiency
MTBF >400,000 hours @ 100% Load, 30°C Ambient

Environmental

Temperature Operating : -5°C to 55°C
Non-operating : -40 to 70°C / Ambient
Altitude Operating: to 16,400 feet (5,000 meters)
Non-operating: to 49,800 feet (15,200 meters)
Relative humidity Operating: to 85% RH, Non-condensing
Storage: to 95% RH, Non-condensing
UL, BSMI, CCC, CB, CE, FCC Class A, CISPR Class A, RoHS
