All-In-One Connector

CPR-4021-2H3

Backplane with Case for 2x CRPS (Redundant).

All-in-one flexible backplane with a case that supports two redundant MCRPS/CRPS-185mm power supplies for easy power distribution and deployment. The multi-connector backplane can even be custom-designed based on customer requirements.

  • Dimension: 265 x 78 x 84 mm (D x W x H)
Datasheet
INPUT PIN ASSIGNMENT
TOP SIDE BOTTOM SIDE
PIN# Pin Function PIN# Pin Function
P1 GND P7 GND
P2 GND P8 GND
P3 GND P9 GND
P4 +12V P10 +12V
P5 +12V P11 +12V
P6 +12V P12 +12V
S1 PMBus SDA S8 A0 (SMBus address)
S2 PMBus SCL S9 A1 (SMBus address)
S3 PSON# S10 +12Vstby
S4 SMBAlert# S11 Cold Redundancy Bus
S5 Return sense / PSKILL S12 12V load share bus
S6 +12V Remote sense S13 Imon / PRESENT
S7 PWOK S14 VINOK
OUTPUT VOLTAGE
Output Nominal Regulation
+12V 12V 11.4 to 12.6V
+12Vsb 12V 11.4 to 12.6V
+5V 5V 4.75 to 5.25V
+3V3 3.3V 3.13 to 3.46V
-12V -12V -11.4 to -12.6V
+5Vsb 5V 4.75 to 5.25V
OUTPUT CURRENT
Output Minimum Maximum
+12V 0.5A 333A
+12Vsb Depends on the PSU
+5V 0.3A 30A
+3V3 0.3A 30A
-12V 0A 0.6A
+5Vsb 0.3A 5A

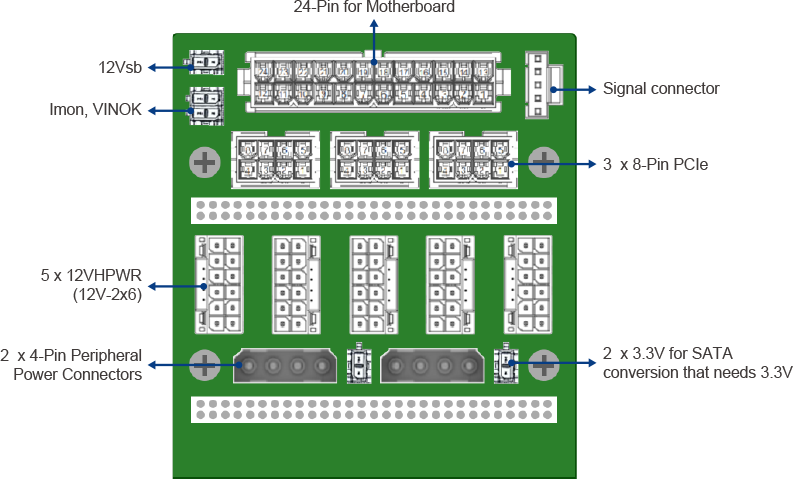

MULTI-CONNECTOR PCB
