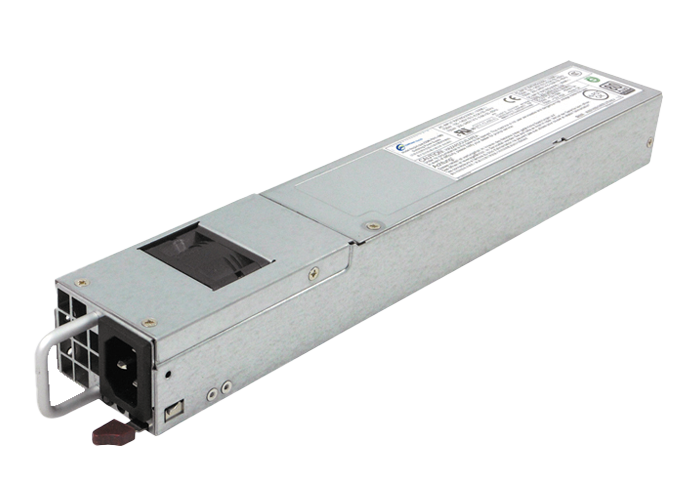

CDR-1221-4M1

CDR-1221-4M1

1200W

Dual Input (AC/DC-DC)

Redundant

Type
  • Dual Input (AC/DC-DC)
Dimensions
  • 322 X 54.5 X 40 mm (D x W x H)
Max Power
  • 1200W
80 PLUS
  • 80 plus Titanium
Key Features
  • 80 PLUS Titanium
  • High Efficiency: 96%
  • Hot Swappable
  • PMBus Support
  • Full Digital Power Supply
  • Smart Fan Speed Control
  • Active Power Factor Correction
  • In-system Firmware Upload
Datasheet
Input
Voltage AC input: 90 - 264Vac
DC input: 180 - 300Vdc
Frequency 47 - 63Hz
Current AC input: 12.5A - 6.0A
DC Input: 6A
Output
Voltage+12V (100-127Vac)+12V (200-240Vac)+5Vsb
Regulation±5%±5%±5%
Max Load83A100A3A
Ripple & Noise120mVp-p120mVp-p50mVp-p
General
Hold-up time 12ms @ 75% load
Efficiency At least 96% @ 50% load
MTBF 200,000 hours @ 25°C
Environmental
Temperature Operating: 0-50°C
Non-operating: -40°C to 70°C
Altitude Operating: 16,500 feet (5,000 meters)
Non-operating: 35,000 feet (10,580 meters)
Relative humidity Operating: 5% to 90% RH, non-condensing
Non-operating: 5% to 95% RH, non-condensing
UL, cUL, BSMI, CQC, CB, CE, FCC Class A, CISPR Class A, RoHS
